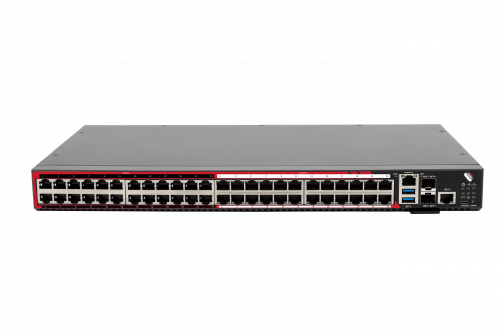

OM2200 Operations Manager
Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.
The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear’s Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
- x86 platform supporting Docker and Python
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
Use our product configuration wizard to find the specific SKU you need for your application.
AVAILABLE PRODUCTS: 72
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 16 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 16 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, UK Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE/SFP, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE SFP, Python Runtime, Docker Support, Secure Boot, UK Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, EU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE, Python Runtime, Docker Support, Secure Boot, EU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, UK Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, EU Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 24 Serial, 24GbE, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 32 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 32 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 32 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 1GbE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - AU Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - EU Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - JP Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - UK Power Cord
DESCRIPTION: 48 serial software selectable, x86 CPU, supports Docker and Python, Global 4G LTE-A Pro cellular, 8 GB RAM, 64 GB SSD, embedded TPM 2.0 secure boot, 8 x USB 2.0, 2 x GbE/SFP Fiber, Dual AC - US Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 1GbE, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, EU Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, UK Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Python Runtime, Docker Support, Secure Boot, Dual DC power
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, AU Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, EU Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, JP Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, UK Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, US Power Cord
DESCRIPTION: Console Server + Automation, 48 Serial, 8G RAM, 64G Flash, 10GbE SFP+, Global LTE, Python Runtime, Docker Support, Secure Boot, Dual DC power
- x86 CPU supports standard Docker containers and a Python runtime environment, to automate NetOps processes
- TPM2.0 chip provides a secure boot process to protect against configuration and firmware tampering
- 64GB internal flash memory, to keep configuration and software files on site, where they are needed
- Open architecture, based on Linux operating system. Standard DevOps tools, including Ansible, Docker and Python, used for automation
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- Embedded LTE-A Pro cellular module for global access
All Models:
All serial ports are RJ45 RS-232 Console Port (50 to 230,400 bps, software selectable Cisco-straight or Cisco-rolled pinout)
1 x micro USB 2.0 Console Port and 1 x RJ45 Serial
8 x USB 2.0 ports for device console management
2 x USB 3.0 Host Ports for storage
2 x 10/100/1000 Ethernet/SFP Fiber port
OM2216 – 16 x RJ45 RS-232 Serial Ports
OM2232 – 32 x RJ45 RS-232 Serial Ports
OM2248 – 48 x RJ45 RS-232 Serial Ports
Power:
Dual socket universal 100-240V AC
Power consumption for serial models than 30W
Power consumption for mixed models less than 45W
Dimensions and Weight:
17.25 x 10.25 x 1.75 in – 7.7 lbs
44 x 26 x 4.5 cm – 3.5 kg
Environmental:
Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F
Storage Temperature: -30°C to +60°C, -22°F to +140°F
Humidity: 5% to 90%
Emissions:
EN55032: 2015 Class A
Immunity:
EN61000-4-2, -4-3:2006+A1: 2006+A2:2010, -4-4: 2007, -4-5: 2014, -4-6:2008, -4-8: 2009, -4-11: 2010, -4-28: 2010 EN61000-3-2: 2014, EN61000-3-3: 2013
Memory & CPU:
- AMD GX-412TC 1.4 GHz 4-core 64-bit x86
- 8 GB DDR3 RAM
MTBF:
100,000 hours
Security and Authentication:
Trusted Platform Module 2.0
AAA – TACACS+
SSH
Embedded Firewall
OpenVPN – Lighthouse Connection
Cellular Specifications (OM22xx-L models)
SIM Slot: Dual Push Click 2FF SIM slots
Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
Air Interface: LTE-A Pro (LTE-LAA), HSPA+
Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19
Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
