Overview

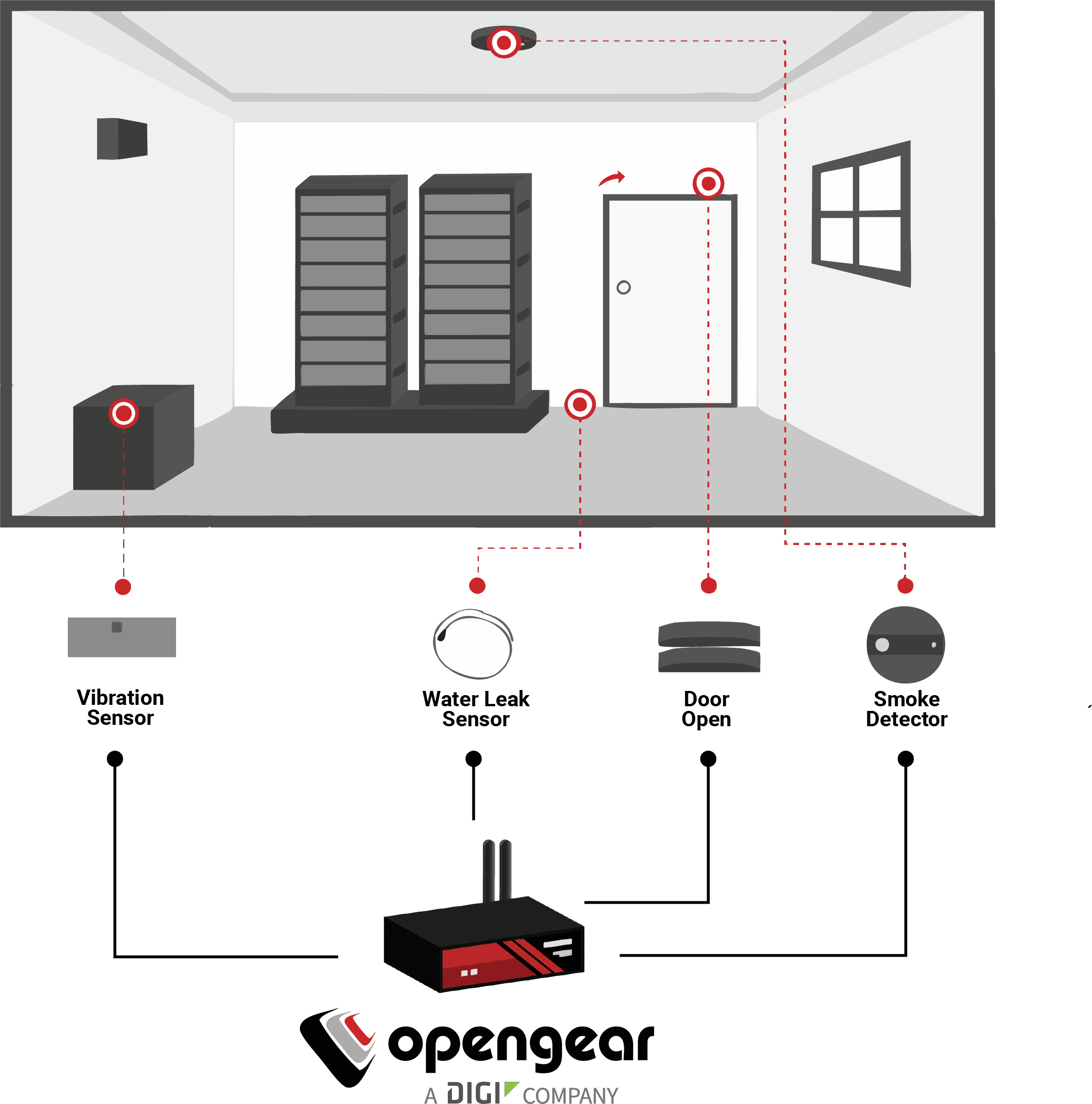

Opengear environmental devices provide monitoring and alerting solutions for an IT infrastructure’s physical environment. Detect changes in temperature, humidity, smoke and motion or the presence of water in data centers and remote sites. Set up automated response sequences through SMS, email or even Twitter through custom scripts. View the ambient temperature and humidity of a remote environment and set the device to automatically send progressive alarms if they rise – from warning levels to critical alerts. The EMD5000 also monitors the status of one or two external dry contacts, which can be connected to a smoke detector, water detector, vibration or open-door sensor giving enhanced visibility into your remote sites.

Our environmental devices plug into the serial ports on Opengear console servers and enables remote monitoring using a standard web browser. Alerts are sent via email, SMS and SNMP traps. Automated response sequences can be initiated by environmental trigger events. Reports can be accessed remotely using standard web browsers and data logged with time stamps.

  • Monitors temperature, humidity, and status of one contact/sensor (supports two contacts/sensors when connected to console servers with Classic pinout)
  • Works with Opengear console server to provide secure authenticated access
  • EMD can be located up to 10 meters (33 feet) from console server
  • Measures ambient temperatures between -20º and 80ºC
  • Measures relatively humidity between 10 and 90 percent
  • Readily available smoke detector, vibration sensor, water leak detector and door open/close sensor
  • Displays current status and history in console server web-based UI
  • Option to maintain local or remote audit logs of temperature, humidity and sensor status
  • Supports user-defined thresholds for temperature, humidity, and contact closure status
  • Auto-sends alarms on any critical or warning threshold and on contact closure events
  • Supports graceful shutdown of affected equipment with Network UPS Tool control
  • Can attach multiple EMD devices to serial ports on each console server
  • One-year limited warranty with option for enhanced warranty

Categories

Products & Accessories
Part Number
Description
Price

Environmental monitoring device for Classic serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-00 – Environmental Monitor Device
EU
210

Environmental monitoring device for Cisco Rolled serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-01 – Environmental Monitor Device
EU
210

Environmental monitoring device for Cisco Straight serial pinout, temperature, humidity, 1 x TTL DIO terminal

EMD5000-02 – Environmental Monitor Device
EU
210

Water leak detector (3ft/1m)

EMD5780 – Water leak detector
EU
135

Door contact sensor

EMD5781-10 – Door contact sensor
EU
10

Vibration sensor

EMD5782 – Vibration sensor
EU
45
EMD5779-QA-1

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
EU
135

Door contact sensor

EMD5781-10 – Door contact sensor
AU
$20

Vibration sensor

EMD5782 – Vibration sensor
AU
$70

Smoke detector/alarm (110V AC, NEMA 5-15)

EMD5890-QA – Smoke detector/alarm
AU
$230

Environmental monitoring device for Classic serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-00 – Environmental Monitor Device
AU
$350

Environmental monitoring device for Cisco Rolled serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-01 – Environmental Monitor Device
AU
$350

Environmental monitoring device for Cisco Straight serial pinout, temperature, humidity, 1 x TTL DIO terminal

EMD5000-02 – Environmental Monitor Device
AU
$350

Water leak detector (3ft/1m)

EMD5780 – Water leak detector
AU
$230
EMD5779-QA-1

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
AU
$230
EMD5779-QA-1

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
UK
£105

Environmental monitoring device for Classic serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-00 – Environmental Monitor Device
UK
£160

Environmental monitoring device for Cisco Rolled serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-01 – Environmental Monitor Device
UK
£160

Environmental monitoring device for Cisco Straight serial pinout, temperature, humidity, 1 x TTL DIO terminal

EMD5000-02 – Environmental Monitor Device
UK
£160

Water leak detector (3ft/1m)

EMD5780 – Water leak detector
UK
£105

Door contact sensor

EMD5781-10 – Door contact sensor
UK
£10

Vibration sensor

EMD5782 – Vibration sensor
UK
£35
EMD5779-QA-1

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
$152

Environmental monitoring device for Classic serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-00 – Environmental Monitor Device
$235

Environmental monitoring device for Cisco Rolled serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-01 – Environmental Monitor Device
$235

Environmental monitoring device for Cisco Straight serial pinout, temperature, humidity, 1 x TTL DIO terminal

EMD5000-02 – Environmental Monitor Device
$235

Water leak detector (3ft/1m)

EMD5780 – Water leak detector
$152

Door contact sensor

EMD5781-10 – Door contact sensor
$12

Vibration sensor – 3′ Cable Length

EMD5782 – Vibration sensor
$48

Smoke detector/alarm (110V AC, NEMA 5-15)

EMD5890-QA – Smoke detector/alarm
$152

Environmental monitoring device for Classic serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-00 – Environmental Monitor Device for Classic serial pinout
International
$235

Environmental monitoring device for Cisco Rolled serial pinout, temperature, humidity, 2 x TTL DIO terminal

EMD5000-01 – Environmental Monitor Device for Cisco Rolled serial pinout
International
$235

Environmental monitoring device for Cisco Straight serial pinout, temperature, humidity, 1 x TTL DIO terminal

EMD5000-02 – Environmental Monitor Device for Cisco Straight serial pinout
International
$235

Water leak detector (3ft/1m)

EMD5780 – Water leak detector
International
$152

Door contact sensor

EMD5781-10 – Door contact sensor
International
$12

Vibration sensor

EMD5782 – Vibration sensor
International
$48

Smoke detector/alarm (110V AC, NEMA 5-15)

EMD5890-QA – Smoke detector/alarm
International
$152
EMD5779-QA-1

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
International
$152

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
$152

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
AU
$230

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
International
$152

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
EU
135

Smoke detector/alarm (220V AC, IEC C-13)

EMD5779-QA – Smoke detector/alarm
UK
£105
