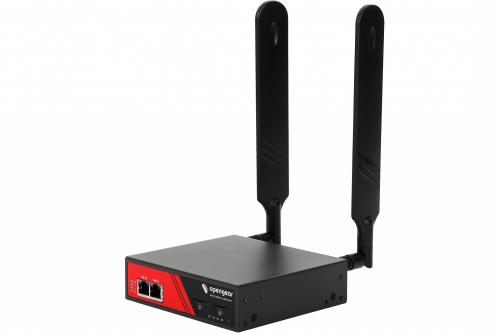

ACM7000-L Resilience Gateway

For small IT deployments like branch offices and edge locations, the Resilience Gateway provides secure alternate access to your critical devices via an embedded, global 4G-LTE cellular modem.

Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on Smart Out-of-Band access to your remote networking equipment. A 4 port GbE switch option is available, and every unit includes 4GB internal memory.

The ACM7000-L Resilience Gateway with Failover to Cellular™ is used in small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical.

CONFIGURE YOUR ACM7000-L Resilience Gateway

Reset

Use our product configuration wizard to find the specific SKU you need for your application.

AVAILABLE PRODUCTS: 6

SKU FORM FACTOR
SKU: ACM7004-2-L FORM FACTOR: Compact

DESCRIPTION: 4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, Global 4G LTE-A Pro cellular, 2 DIO and 2 output ports

SKU: ACM7004-2-LMP FORM FACTOR: Compact

DESCRIPTION: 4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4G LTE cellular, 2 DIO and 2 output ports

SKU: ACM7004-5-L FORM FACTOR: Compact

DESCRIPTION: 4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, Global 4G LTE-A Pro cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

SKU: ACM7004-5-LMP FORM FACTOR: Compact

DESCRIPTION: 4 serial Cisco Straight pinout, ext power, 1 GbE Ethernet or fiber SFP & 4 port GbE switch, 4G LTE cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

SKU: ACM7008-2-L FORM FACTOR: Compact

DESCRIPTION: 8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, Global 4G LTE-A Pro cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

SKU: ACM7008-2-LMP FORM FACTOR: Compact

DESCRIPTION: 8 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, 4G LTE cellular, dual SIM, 2 DIO and 2 output ports, Global Power Adapter

  • 4-8 serial ports, out-of-band management of network and server devices
  • 4 x USB 2.0 console ports, out-of-band management of network and server devices
  • Automatically detect and recover from outages and repair equipment faults
  • Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.

Models & Connectors

All Models:

  • All serial ports are RJ45 RS-232 (50 to 230,400bps, Cisco pinout)
  • 2 x RJ45 10/100/1000 Ethernet ports, primary and failover
  • 4 x USB 2.0 console port
  • 2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)
  • 2 x High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)

ACM7004: 4 x RS-232 serial ports
ACM7004-5: 4 x RS-232 serial ports, 4 x GbE ports, 1 x GbE – Copper or SFP
ACM7008: 8 x RS-232 serial ports

Power

110-240V AC to 12V DC external power adapter
11.5 W total consumption

Dimensions & Weight

  • 5 1/8 x 4 3/4 x 1 3/8 in | 13 x 12 x 3.5 cm
  • 1.3 lbs (.6 kg)

Environmental

Humidity: 5% to 90%
Ambient operating temperature: -25°C to 60°C (-13°F to 140°F)
Non-operating storage temp: -40°C to 75°C (-40°F to 167°F)

Emissions

EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015,
ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010,
EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008

Immunity

EN 55024:2010, CISPR 24:2010,
EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010,
EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004

Isolation

Serial Port: 4kV ESD protection on RS-232 transceivers
Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

Other Agency Approvals

CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support PCI DSS 3.2 compliance, NERC CIP standards, FIPS 140-2 validated module Certificate #2473

Memory & CPU

800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
256MB DDR3  SDRAM, 32MB Embedded Flash and 4GB Internal NAND Flash

MTBF

AC-DC (12V) adapter – 100,000 hours

Operating System

Linux with source code access and Custom Development Kit (CDK)

Security & Authentication

IPsec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP

Gateway Router

Stateful firewall, DHCP server, DDNS, Port forwarding, IP filtering with access control lists



Remote Management

HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response, RESTful APIs

Cellular Specifications for:

ACM7000-L

SIM Slot: Dual Push Click 2FF SIM slots

Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module ceritfied CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-A Pro (LTE-LAA), HSPA+

Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19

Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12

ACM7000-LMP

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: -LMP model utilizes Sierra Wireless MC7430. CE, GCF, JRF/JPA, NCC certified

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE-FDD, LTE-TDD, HSPA+, TD-SCDMA; Supports most carriers in APAC region.  MIC-R and MIC-T approved for use in Japan

Frequency Bands: 4G LTE B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41 3G WCDMA B1, B5, B6, B8, B9, B19 TD-SCDMA B39

Data Services: Transfer rate (peak): Download 300 Mbps/Upload 50 Mbps CAT-6

ACM7000-LMA, ACM7000-LMV, ACM7000-LMS, ACM7000-LMCR, ACM7000-LMCT

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: These models utilize the Sierra Wireless MC7354. -LMA is AT&T approved. -LMV is Verizon ODI certified and can be used for Verizon Private Network. -LMS for use Sprint network. The modem is CE, FCC, GCF, IC, NCC, PTCRB certified and can be reprogrammed by the end-user to work with other carriers

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT

Frequency Bands: 4G LTE B2, B4, B5, B13, B17, B25 3G WCDMA B1, B2, B4, B5, B8 EVDO BC0, BC1, BC10 EDGE, GSM, GPRS 850, 900, 1800, 1900 CDMA BC0, BC1, BC10

Data Services: Transfer rate (peak): Download 100 Mbps/Upload 50 Mbps CAT-3

ACM7000-LMR models

SIM Slot: Cradle dual 2FF SIM slot

Modem Device: -LMR model utilizes Sierra Wireless MC7304. CE, GCF, NCC, FCC certified

Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, ; Supports most carriers EMEA, APAC, ANZ.

Frequency Bands: 4G LTE B1, B3, B7, B8, B20 3G WCDMA B1, B2, B5, B8 EDGE, GSM, GPRS 850, 900, 1800, 1900

Data Services: Transfer rate (peak): Download 100 Mbps/Upload 50 Mbps CAT-3

Name Part Number Description

Power Accessories

Name: ACM7000 external DC-DC power converter Part Number: SDC48-12V-4PIN Description: Power Supply – External D/C 12v (36v to 72v) – ACM7000 Models
Name: Power Supply – Wall Wart for ACM7000 Series 12V Part Number: 450031 Description: Power Supply – 12VDC Four Chamber Square Connector – ACM7000
Name: External AC 12V with IEC input – ACM7000 Part Number: 450032 Description: External AC 12V with IEC input – ACM7000

Environmental Accessories

Name: Smoke detector/alarm Part Number: EMD5779-QA Description: Smoke detector/alarm (220V AC, IEC C-13)
Name: Smoke detector/alarm Part Number: EMD5890-QA Description: Smoke detector/alarm (110V AC, NEMA 5-15)
Name: Environmental Monitor Device Part Number: EMD5000-02 Description: Environmental Monitoring Device – X2 Pinout
Name: Water leak detector Part Number: EMD5780 Description: Water leak detector – 3′ Cable length
Name: Door contact sensor Part Number: EMD5781-10 Description: Door contact sensor – 10′ Cable length
Name: Vibration sensor Part Number: EMD5782 Description: Vibration sensor – 3′ Cable length

Wireless Accessories

Name: Antenna – Blade LTE-A Pro with swivel base (-L Devices) Part Number: 569041 Description: Antenna – Blade LTE-A Pro with swivel base (-L Devices)
Name: Antenna Extender – Magnetic Base with 10′ Cable Part Number: 449041 Description: Antenna Extender – Magnetic Base with 10′ Cable
Name: GPS passive antenna Part Number: 569008 Description: Antenna – GPS Passive – 6′ Cable length – For all 3G Cellular units
Name: GPS active antenna Part Number: 569018 Description: Antenna – GPS Active – 6′ Cable length – For all 4G LTE Cellular units

Adapters and Mounting Accessories

590033
Name: Rack Mount Kit – Ears and Screws – ACM7000 Part Number: 590003 Description: Rack Mount Kit – Ears and Screws – ACM7000
Name: ACM7000 / ACM5500 / ACM5000 Rack Mount Tray Part Number: 590033 Description: Rack Mount Tray – All ACM Series
Name: ACM5000 / ACM5500 / ACM7000 DIN rail mount kit Part Number: 590012 Description: Rack Mount – DIN Rail – ACM7000
Name: DB9F to RJ45 straight serial adapter Part Number: 319014 Description: Adapter – DB9F to RJ45 straight serial – DCE -For X2 Pinout
Name: DB9F to RJ45 crossover serial adapter Part Number: 319015 Description: Adapter – DB9F to RJ45 crossover serial – DTE -For X2 Pinout
Name: DB9M to RJ45 straight serial adapter Part Number: 319016 Description: Adapter – DB9M to RJ45 straight serial – DCE – For X2 Pinout
Name: Adapter – DB9F to RJ45 crossover serial – DTE -For X1 Pinout Part Number: 319018 Description: 319017 Adapter – DB9M to RJ45 straight serial – DCE – For X1 Pinout
Name: Adapter – DB9F to RJ45 straight serial – DCE -For X1 Pinout Part Number: 319019 Description: 319017 Adapter – DB9M to RJ45 straight serial – DCE – For X1 Pinout

SFP Gigabit Optical Transceivers

Name: SX SFP fiber transceiver, 550m multi-mode Part Number: 569023 Description: Transceiver – SX SFP – 550m multi-mode
Name: LX/LH SFP fiber transceiver, 2km multi-mode Part Number: 569024 Description: Transceiver – LX/LH SFP – 2km multi-mode
Name: LX/LH SFP fiber transceiver, 10km single-mode Part Number: 569025 Description: Transceiver – LX/LH SFP – 10km single-mode
Name: EX SFP fiber transceiver, 40km single-mode Part Number: 569026 Description: EX SFP fiber transceiver, 40km single-mode

Warranty

Name: OGEXTWAR5-ACM70 Part Number: OGEXTWAR5-ACM70 Description: ACM7000 (Extends to 5th year warranty)
Name: OGEXTWAR6-ACM70 Part Number: OGEXTWAR6-ACM70 Description: ACM7000 (Extends to 6th year warranty)
