OM1300 Operations Manager

All-in-One Resilience for Edge and Remote Environments

Integrated serial access and Ethernet switching in a single compact appliance, simplifying edge deployments and offering streamlined device control.

The OM1300 Operations Manager is a compact, all-in-one appliance designed to deliver resilient out-of-band access for edge, branch, retail, and industrial environments. By combining serial console access and Ethernet switching into a single platform, the OM1300 eliminates the need for multiple devices while maintaining the reliability and security Opengear is known for.

Purpose-built for space-constrained deployments, the OM1300 helps organizations simplify edge infrastructure while ensuring critical systems remain reachable under any condition.

  • 4 or 8 serial ports and integrated Ethernet switch

  • Enterprise-grade performance in a compact, fanless design

  • 4 GB LPDDR4 RAM and 32 GB flash to support advanced workloads and containers

  • Immediate remote access to infrastructure, even during WAN outages

  • Secure access to devices via Lighthouse® or the web UI

  • Smart OOB™ and Python-based automation for repeatable recovery workflows

  • Docker support for running custom applications, monitoring tools, and integration scripts

  • Hardware crypto acceleration for fast, secure VPN sessions under load

When choosing an Opengear Appliance, please select a required Support Solution below.

Premium Support Solutions

OG-PRTS-1YR 1-Year Premium Support – Access to Premium Resources 24×7 and Advanced Replacements
OG-PRTS-2YR 2-Year Premium Support – Access to Premium Resources 24×7 and Advanced Replacements
OG-PRTS-3YR 3-Year Premium Support – Access to Premium Resources 24×7 and Advanced Replacements
OG-PRTS-5YR 5-Year Premium Support – Access to Premium Resources 24×7 and Advanced Replacements
OG-PRTS-7YR 7-Year Premium Support – Access to Premium Resources 24×7 and Advanced Replacements

OM1300 Foundation Support

OG-FNTS-OM1300-1YR 1-Year Foundation Support for OM1300 – 8×5 Regional Support with Advanced Replacement
OG-FNTS-OM1300-2YR 2-Year Foundation Support for OM1300 – 8×5 Regional Support with Advanced Replacement
OG-FNTS-OM1300-3YR 3-Year Foundation Support for OM1300 – 8×5 Regional Support with Advanced Replacement
OG-FNTS-OM1300-5YR 5-Year Foundation Support for OM1300 – 8×5 Regional Support with Advanced Replacement
OG-FNTS-OM1300-7YR 7-Year Foundation Support for OM1300 – 8×5 Regional Support with Advanced Replacement

CONFIGURE YOUR OM1300 Operations Manager

Use our product configuration wizard to find the specific SKU you need for your application.

PRODUCT SERIES
CM8000 OM1300 OM2200 CM8100 Resilience Gateway
SERIAL PORT DENSITY
4 8 16 24 32 48 96
ETHERNET SWITCH PORTS
0 4 8 24
NETWORK
1 GB Ethernet 10 GB Ethernet 5G Analog Modem Cellular LTE SFP Fiber
FEATURES
Automation Tools LSP Enabled
REGION
Americas APAC Australia/NZ China Europe Japan UK

AVAILABLE PRODUCTS: 4

SKU FORM FACTOR

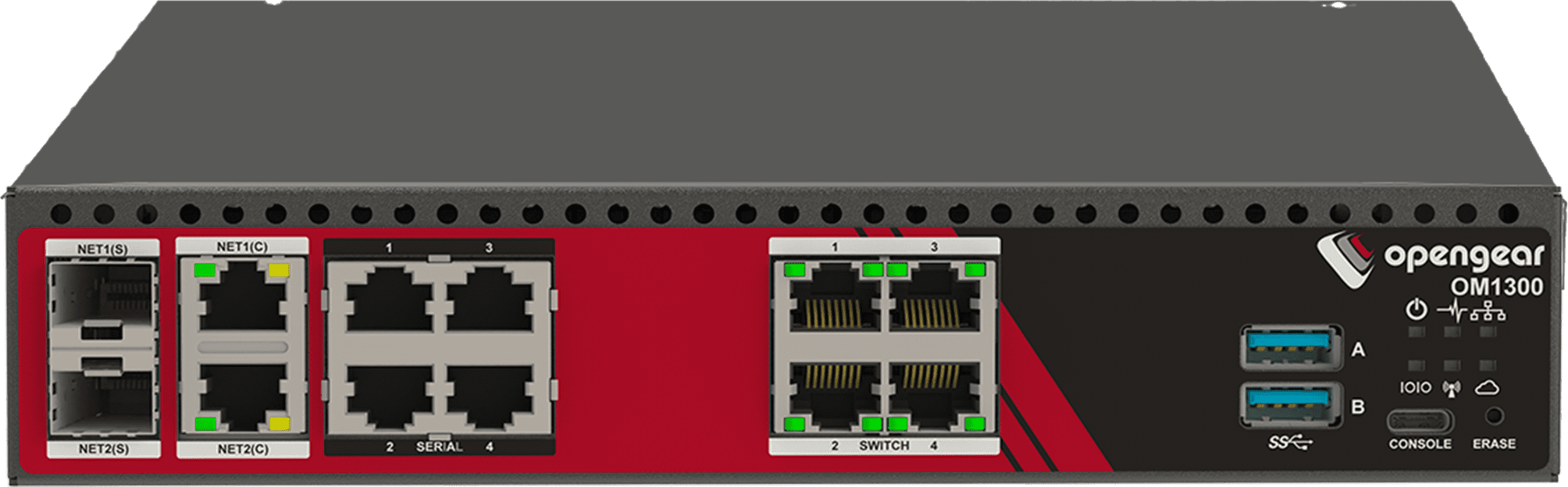

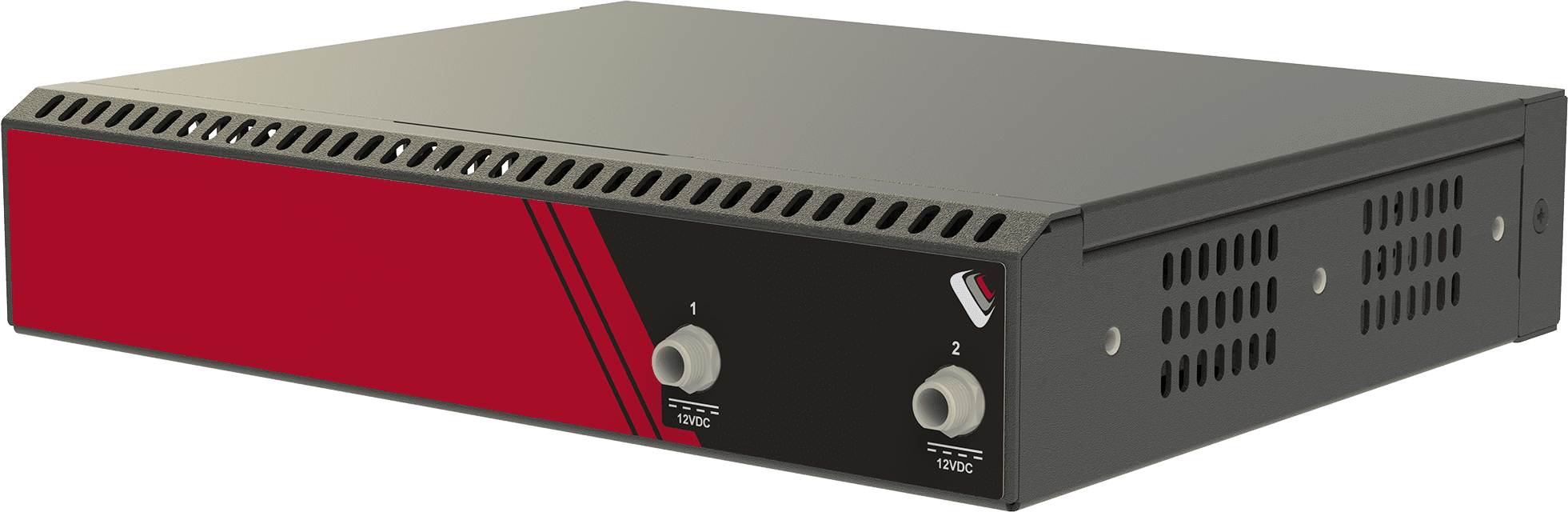

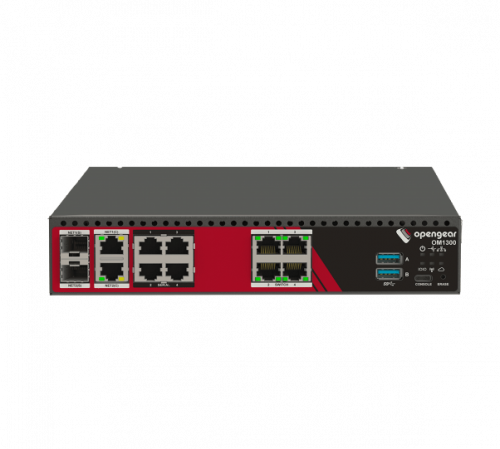

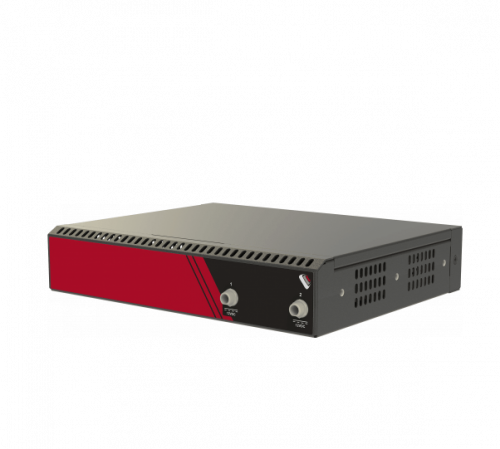

SKU: OM1304-4E FORM FACTOR: Compact

DESCRIPTION: Model OM1304-4E, 4x RS232 X1 or X2 software selectable ports + 4x 1GbE switched, 2x 1GbE/SFP combo, 2x USB 3.0, ARM 1.6GHz 4-core 4GB mem 32GB flash, TPM 2.0, Docker support, barrel threaded DC jacks, 450047 Power Brick and C14 Power cable

SKU: OM1304-4E-LSP FORM FACTOR: Compact

DESCRIPTION: Model OM1304-4E, 4x RS232 X1 or X2 software selectable ports + 4x 1GbE switched, 2x 1GbE/SFP combo, 2x USB 3.0, ARM 1.6GHz 4-core 4GB mem 32GB flash, TPM 2.0, Docker support, barrel threaded DC jacks, 450047 Power Brick and C14 Power cable, Lighthouse Service Portal Enabled

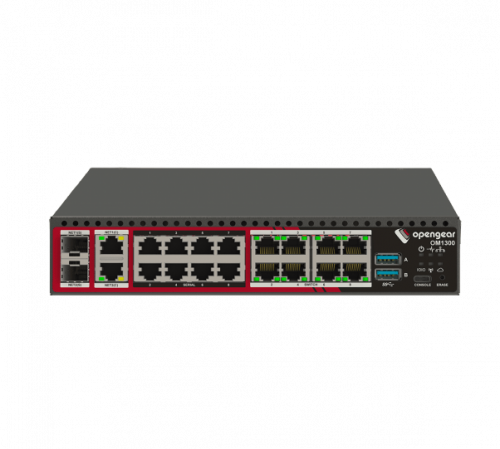

SKU: OM1308-8E FORM FACTOR: Compact

DESCRIPTION: Model OM1308-8E, 8x RS232 X1 or X2 software selectable ports + 8x 1GbE switched, 2x 1GbE/SFP combo, 2x USB 3.0, ARM 1.6GHz 4-core 4GB mem 32GB flash, TPM 2.0, Docker support, barrel threaded DC jacks, 450047 Power Brick and C14 Power cable

SKU: OM1308-8E-LSP FORM FACTOR: Compact

DESCRIPTION: Model OM1308-8E, 8x RS232 X1 or X2 software selectable ports + 8x 1GbE switched, 2x 1GbE/SFP combo, 2x USB 3.0, ARM 1.6GHz 4-core 4GB mem 32GB flash, TPM 2.0, Docker support, barrel threaded DC jacks, 450047 Power Brick and C14 Power cable, Lighthouse Service Portal Enabled

Features
    • 4 or 8 serial ports and integrated Ethernet switch
    • Enterprise-grade performance in a compact, fanless design
    • 4 GB LPDDR4 RAM and 32 GB flash to support advanced workloads and containers
    • Immediate remote access to infrastructure, even during WAN outages
    • Secure access to devices via Lighthouse® or the web UI
    • Smart OOB™ and Python-based automation for repeatable recovery workflows
    • Docker support for running custom applications, monitoring tools, and integration scripts
    • Hardware crypto acceleration for fast, secure VPN sessions under load
Documentation
Data Sheet
User Manual
Quick Start Guide
Accessories

Power Cables

-US Type B NEMA 5-15 to C13 440001 -US Type B NEMA 5-15 to C13
-EU Type F/C Europe Angled CEE7/7 to C13 440013 -EU Type F/C Europe Angled CEE7/7 to C13
-UK Type G UK BS1363 440015 -UK Type G UK BS1363
-AU Type I Australia AS3112 to C13 440002 -AU Type I Australia AS3112 to C13
-JP Type B-PSE Japan JISC8303 to C13 440014 -JP Type B-PSE Japan JISC8303 to C13
-CN Type GB2099 China GB2099 to C13 440053 -CN Type GB2099 China GB2099 to C13
-C14 IEC C14 to C13 10A 6 Power Cable 440055 -C14 IEC C14 to C13 10A 6 Power Cable

Adapters

DB9F to RJ45 crossover serial adapter 319015 Adapter – DB9F to RJ45 crossover serial – DTE -For X2 Pinout
